JLSZ-10 Combined Instrument Transformer
Brief introduction
The current and voltage combined type instrument transformer is used in power system of 50Hz or 60 Hz rated frequency, 1KV and below rated voltage, for energy measurement.

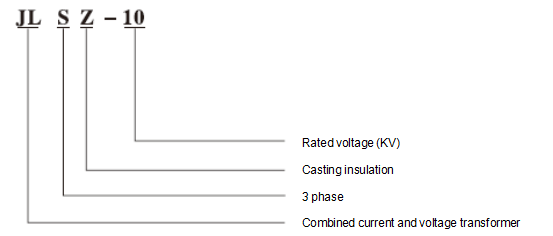

Type designation
Technical data
Voltage transformer
Rated voltage ratio (KV) | Accuracy grade | Rated output(VA) | Limit output(VA) | Rated insulation level (VA) |
10/0.1 | 0.2 | 15 | 300 | 12/42/75 |
Current transformer
Rated current ratio (A) | Accuracy grade | Rated output(VA) | Short-time thermal current (KA/s) | Dynamic current (KA) | Rated insulation level (VA) |
5-200/5 | 0.2S | 15 | 100I1n | 2.5Ith | 12/42/75 |
Note: If the user’s required data is different from the above-mentioned scope, it can be negotiated to solve the problem

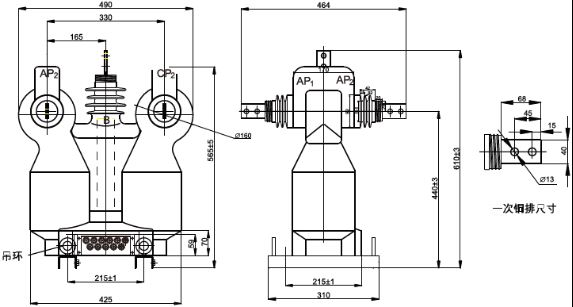

Overall dimensions:

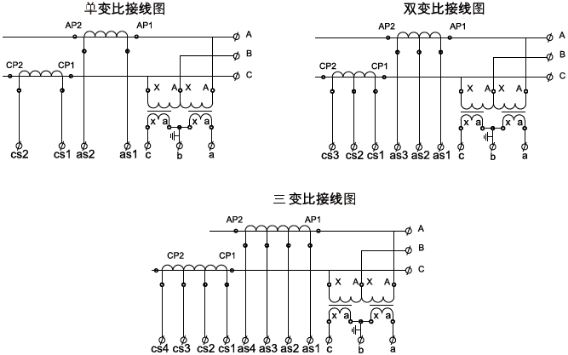

Wiring diagram
Hyliton Power Technology is one of the largest and experienced manufacturers and suppliers of high-tech products in China who can offer you advanced and high quality combined current and voltage transformers OEM at competitive price. Welcome to order our CE combined current and voltage transformers made in China.
Download the specifications of JLSZ-10 combined instrument transformer Transformers
Combined Current and Voltage Transformer Download.pdf
