LZW-32A-10 CT For 32 Pole Mounted Switch

Overview: The LZW-32-10-A series CT is designed for10kV AC power distribution system. And it is mainly installed in the ZW32-10 pole-mounted switches for the protection and measurement of three-phase current

Overview:

The LZW-32-10-A series CT is designed for10kV AC power distribution system. And it is mainly installed in the ZW32-10 pole-mounted switches for the protection and measurement of three-phase current. It is designed with superconducting magnetic materials, so that it can both meet the requirements of high-precision and high-capacity simultaneously. In addition, the product is covered by a layer of silicone rubber for insulation, hence ,it has the advantages of high temperature resistance, low temperature resistance, corrosion resistance, UV-resistance, anti-aging, maintenance free, etc.

There are 2 models of the A type LZW-32 CT, A1 and A2,.The A2 adopts dual-winding design, so that it can achieve functions of measurement and protection at the same time

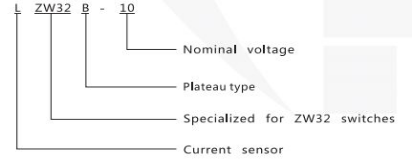

Type Designation:

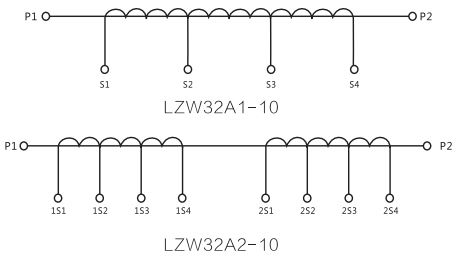

Electrical Diagrams:

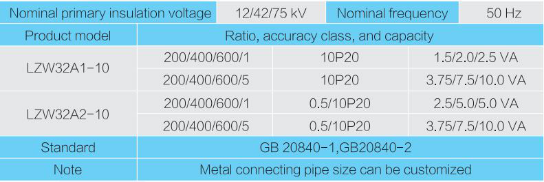

Technical Data:

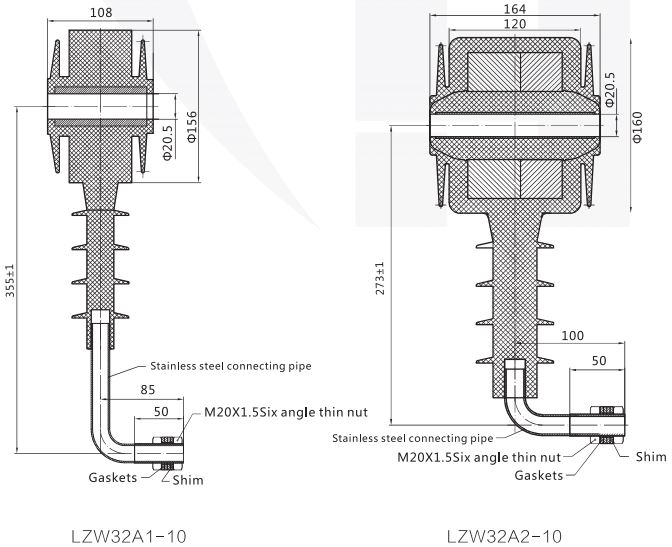

Drawings:

Download the specifications of LZW32A-10 series current transformer   Transformers

LZW32 series current transformer  download.pdf
